Geologic interpretation Lamont Earthquake, CA

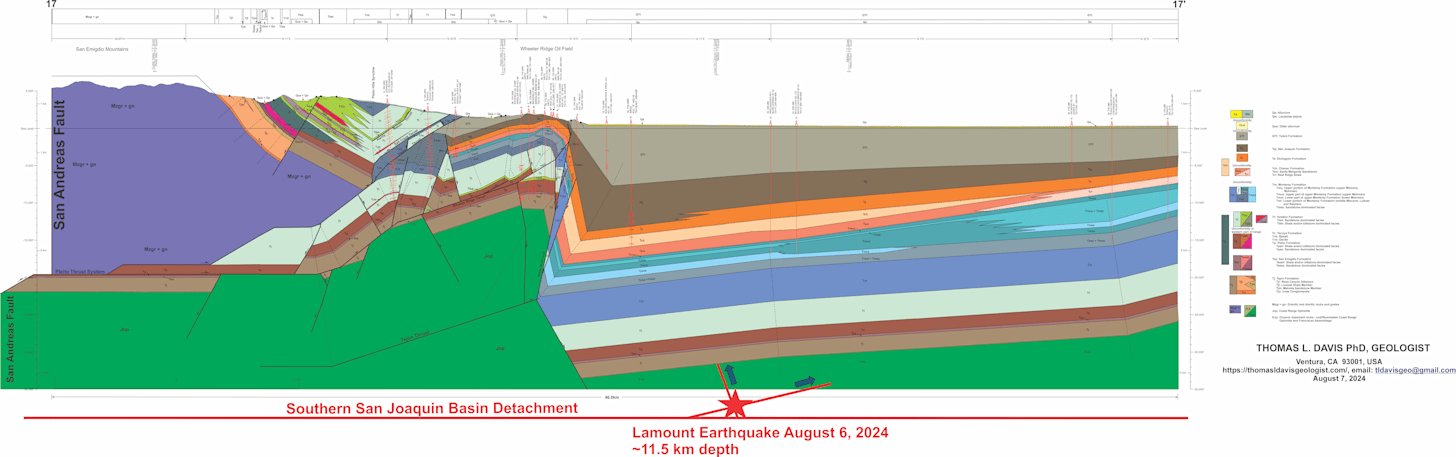

My first stab at a geologic interpretation of the Lamont Earthquake of August 6, 2024. I used the USGS moment tensor to place the source depth and fault plane solutions: https://earthquake.usgs.gov/earthquakes/eventpage/ci40865184/moment-tensor?source=us&code=us_6000nih1_mww
Then modified my southern California cross section 17-17':
https://drive.google.com/file/d/1dKUCug6mVG_MgV0VsdpO7ucHWEFDQQWX/view
Thanks for this geologic interpretation. Your graphic was a very large 12 GB file. It only seems to work if the reader downloads the file and uses their computer's software to magnify it so it is readable.
